Created with Pixso. 1260 ~ 1620nm 1x2 Single Channel OADM Multiplexer CWDM Device with Low Insertion Loss

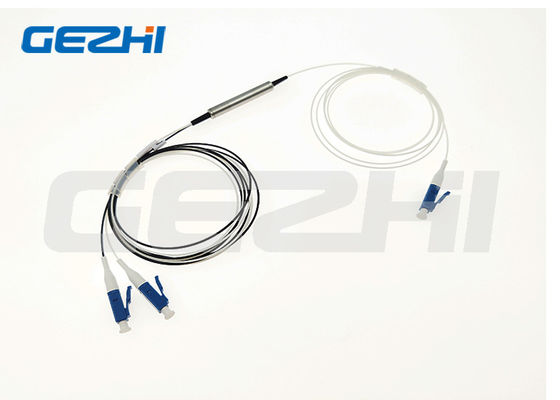

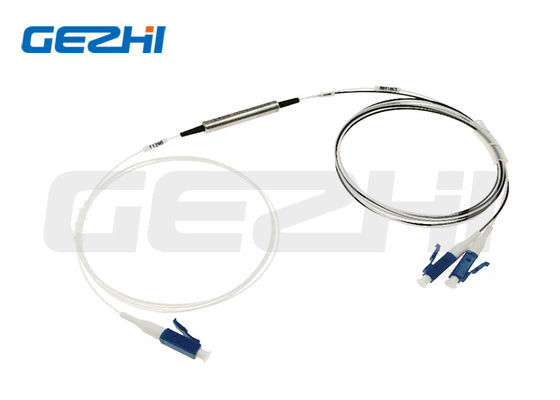

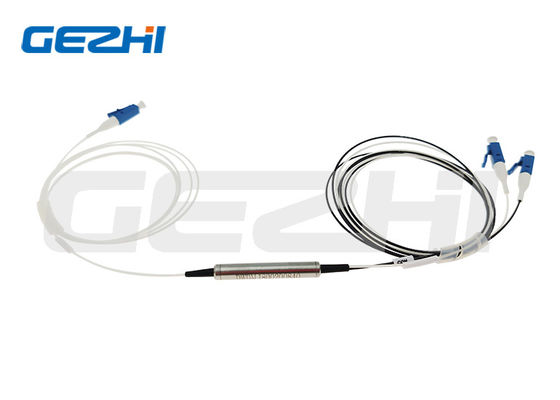

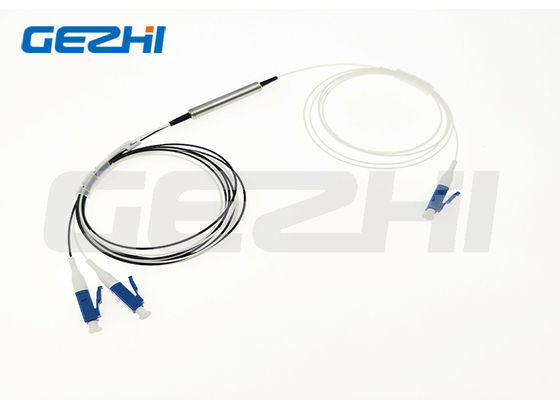

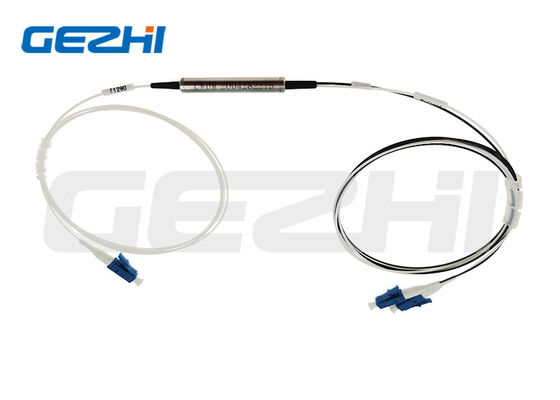

1260 ~ 1620nm 1x2 Single Channel OADM Multiplexer CWDM Device with Low Insertion Loss
  • name
  • name
  • name
  • name
  • name

1260 ~ 1620nm 1x2 Single Channel OADM Multiplexer CWDM Device with Low Insertion Loss

Brand Name: Gezhi or OEM
Model Number: 1x2 OADM Multiplexer
MOQ: 1 pieces
Price: USD >= 1 pieces $10
Delivery Time: 7 Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Channel Wavelength:
1260 ~ 1620nm
Center Wavelength Accuracy:
±0.5nm
Channel Spacing:
20nm
Pass Channel Insertion Loss:
≤0.6dB
Return Loss:
>45dB
Operating Temperature:
-20~+75℃
Packaging Details:
inner box,Carton
Supply Ability:
1000 Piece/Pieces per Day
Highlight:

1x2 CWDM OADM Multiplexer

,

1620nm CWDM OADM Multiplexer

,

3 port CWDM OADM Multiplexer

Product Description

Product description

                              1260 ~ 1620nm 1x2 OADM Multiplexer 3 port single Channel CWDM device

The 1x2 OADM Multiplexer device is thin film filter technology and metal bonding micro optics packaging for improved performance, such as lower insertion loss and wide channel bandwidth, higher thermal stability, flexible channel configuration with a competitive cost structure.



1260 ~ 1620nm 1x2 Single Channel OADM Multiplexer CWDM Device with Low Insertion Loss

1260 ~ 1620nm 1x2 Single Channel OADM Multiplexer CWDM Device with Low Insertion Loss

1260 ~ 1620nm 1x2 Single Channel OADM Multiplexer CWDM Device with Low Insertion Loss

1260 ~ 1620nm 1x2 Single Channel OADM Multiplexer CWDM Device with Low Insertion Loss



Features

Low Insertion Loss

Highly Stable & Reliable
Epoxy-Free Optical Path

High Channel Isolation

Low Profile Packaging



Applications

Fiber Amplifier System

Add/Drop Channels

WDM Systems

CATV Fiberoptic Links



Specification

Parameter Specification
Channel Wavelength (nm) 1260 ~ 1620
Center wavelength Accuracy (nm) ±0.5
Channel Spacing (nm) 20
Channel Passband (@-0.5dB bandwidth (nm) >13
Pass Channel Insertion Loss (dB) ≤0.6
Reflection Channel Insertion Loss (dB) ≤0.4
Channel Ripple (dB) <0.3
Isolation (dB) Adjacent >30
Non-adjacent >40
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 300
Opterating Temperature (℃) -20~+75
Storage Temperature (℃) -40~85
Package dimension (mm)

Φ5.5x34 (Bare fiber)

Φ5.5x38 (900um Loose tube)

Note: 1. Customization is available.

2. Specified with connector





Drawing

It drops or adds one wavelength-specific channel from the network fiber in single-seded transmission.



1x2 OADM Multiplexer 3 port single Channel CWDM device 0

1x2 Single Channel CWDM add drop multiplexer for EAST or WEST for bi-directional data transmission over single fibers.



1 Channel OADM filter cascading

1x2 OADM Multiplexer 3 port single Channel CWDM device 1

1x2 OADM Multiplexer 3 port single Channel CWDM device

1x2 OADM Multiplexer 3 port single Channel CWDM device 2

High Quality & Stability Material
1260 ~ 1620nm 1x2 Single Channel OADM Multiplexer CWDM Device with Low Insertion Loss

Use Import Filter with High Reliable & Stable quality


1260 ~ 1620nm 1x2 Single Channel OADM Multiplexer CWDM Device with Low Insertion Loss

Use Original EMI OPTOCAST 3410-VM Glue


1260 ~ 1620nm 1x2 Single Channel OADM Multiplexer CWDM Device with Low Insertion Loss

Use High Quality G-Lens and Collimator






Test Enviroment
1260 ~ 1620nm 1x2 Single Channel OADM Multiplexer CWDM Device with Low Insertion Loss
1260 ~ 1620nm 1x2 Single Channel OADM Multiplexer CWDM Device with Low Insertion Loss
1260 ~ 1620nm 1x2 Single Channel OADM Multiplexer CWDM Device with Low Insertion Loss
1260 ~ 1620nm 1x2 Single Channel OADM Multiplexer CWDM Device with Low Insertion Loss
NO-dust workshop
High Temp. Ageing & High-Low Temperature cycling
100% Testing Before Shipment
Optical Spectrum Analysis



SIMILAR PRODUCTS
1260 ~ 1620nm 1x2 Single Channel OADM Multiplexer CWDM Device with Low Insertion Loss
1260 ~ 1620nm 1x2 Single Channel OADM Multiplexer CWDM Device with Low Insertion Loss
1260 ~ 1620nm 1x2 Single Channel OADM Multiplexer CWDM Device with Low Insertion Loss



FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
