2x2 Polarization Maintaining Fused WDM PM Filter with Low Insertion Loss High Extinction Ratio and High Isolation

Name: 2x2 Polarization Maintaining Fused WDM PM Filter with Low Insertion Loss High Extinction Ratio and High Isolation
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: PM FUSED WDM-XX
Price: 13.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	PM FUSED WDM-XX
MOQ:	1 pieces
Price:	USD >= 1 pieces $25
Delivery Time:	7 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Operating Wavelength:

980/1030, 980/1064, 980/1310, 980/1550, 1064/1550, 1310/1550, 1570/2000 Nm

Insertion Loss:

≤0.6, ≤0.8, ≤0.8, ≤0.7, ≤0.7, ≤0.5, ≤0.5 DB

Isolation:

≥13, ≥13, ≥18, ≥18, ≥18, ≥16, ≥15 DB

Extinction Ratio:

≥18, ≥18, ≥18, ≥18, ≥20, ≥18, ≥18 DB

Max Power Handling:

3 W

Package Dimension:

Φ3.0×60(bare Fiber), Or Ф3.0×70(900μm Loose Tube) Mm

Packaging Details:

inner box,Carton

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

2x2 PM Filter Wavelength Division Multiplexer

2x2 Fused WDM PM Filter

Fused WDM PM Filter

Product Description

Product description

2x2 Polarization Maintaining Fused WDM PM Filter Wavelength Division Multiplexer

GEZHI Photonics uses unique fusing technique and polarization maintaining fiber to build polarization maintaining fused WDM. It features low excess loss, small size and high polarization extinction ratio and high isolation. PM WDM is widely used for optical sensors, fiber gyro, optical amplifier. GEZHI offer 980nm to 2000nm PM FBT WDM (Polarization Mainintaining Fiber fused biconical taper wavelength division multiplexers)with high extinction ratio loss and low insertion loss.

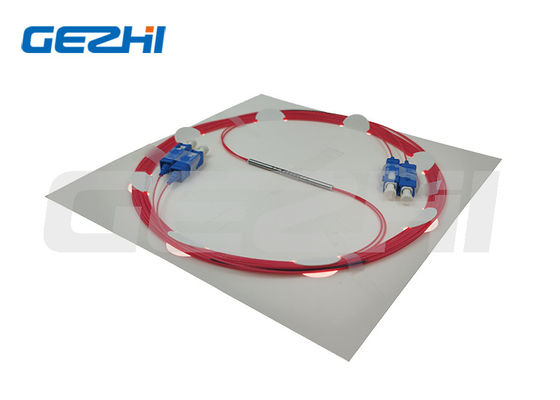

2x2 Polarization Maintaining Fused WDM PM Filter with Low Insertion Loss High Extinction Ratio and High Isolation 0

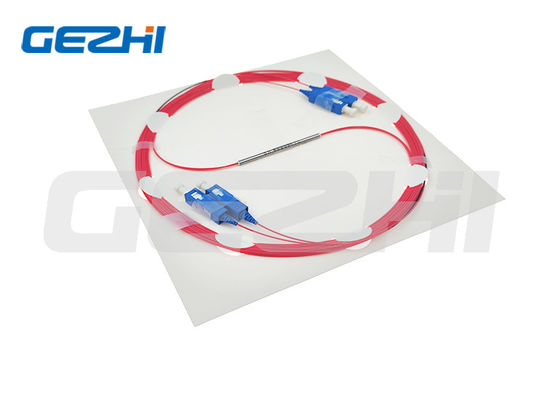

2x2 Polarization Maintaining Fused WDM PM Filter with Low Insertion Loss High Extinction Ratio and High Isolation 1

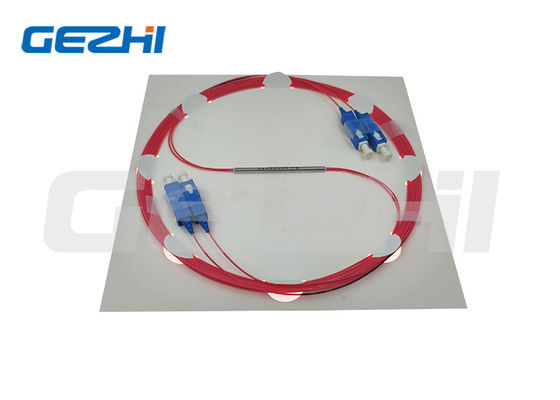

2x2 Polarization Maintaining Fused WDM PM Filter with Low Insertion Loss High Extinction Ratio and High Isolation 2

Feature

Low Insertion Loss
High return loss
High Extinction Ratio
High power handling
High Stability and Reliability

PRODUCT SPECIFICATIONS

Parameters	Unit	Values
Operating Wavelength	nm	980/1030	980/1064	980/1310	980/1550	1064/1550	1310/1550	1570/2000
Wavelength Bandwidth	nm	±5	±15	±15	±15	±15	±15	±15
Insertion Loss	dB	≤0.6	≤0.8	≤0.8	≤0.7	≤0.7	≤0.5	≤0.5
Isolation	dB	≥13	≥13	≥18	≥18	≥18	≥16	≥15
Extinction Ratio	dB	≥18	≥18	≥18	≥18	≥20	≥18	≥18
Fiber Type	/	PM980	PM980	PM980	PM980	PM1550	PM1300	PM630-HP
Max Power Handling (CW)	W	3	3	3	3	3	3	3
Return Loss	dB	≥55
Tensile Load	N	≤5
Operating Temperature	℃	-5~+75
Storage Temperature	℃	-40~+85
Package Dimension	mm	Φ3.0×60(bare fiber), or Ф3.0×70(900μm loose tube)

Dimensions
