6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable

6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable
6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable 6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable 6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable 6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable

Large Image :  6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable

Product Details:
Place of Origin: China
Brand Name: Gezhi or OEM
Certification: CE RoHS,ISO9001
Model Number: Multi-Fiber Breakout Cable
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: USD >= 1 pieces $0.89
Packaging Details: inner box,Carton
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Day
Detailed Product Description
Cable Jacket: PVC Fiber Count: 6 Fibers
Wavelength: 1310/1550nm Fiber Mode: OS2 9/125μm
Polish Type: UPC/APC Connector Type: LC/SC/ST/FC
Number Of Conductors: 6
High Light:

Indoor Multi Fiber Breakout Cable

,

6 Fibers Multi Fiber Breakout Cable

,

3.0mm Multi Fiber Breakout Cable

Product description

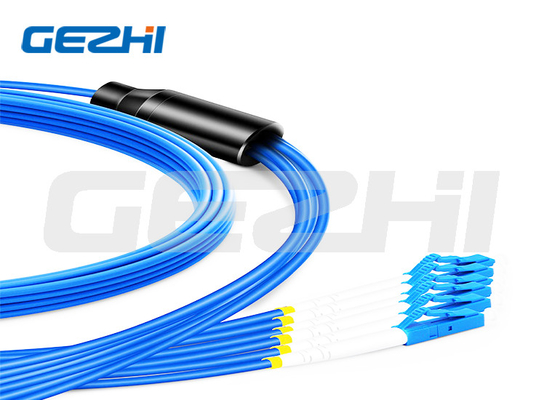

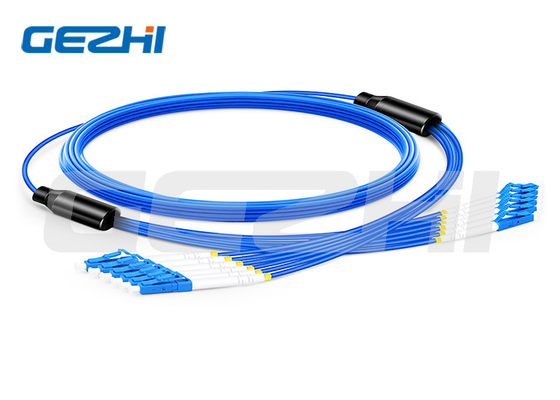

                                    6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable

Armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with slight dust, oil, gas, moisture, or even damage-causing rodents and pests.



6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable 0

6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable 1

6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable 2

6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable 3

6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable 4

6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable 5

6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable 6

6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable 7

6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable 8

Specification



Connector Type
LC/SC/ST/FC
Polish Type
UPC/APC
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Fiber Count
6 Fibers
Cable Jacket
PVC
Fiber Grade
G.657.A1
Minimum Bend Radius
30D (Dynamic/Static)
Insertion Loss
≤0.3dB
Return Loss
UPC≥50dB, APC≥60dB
Attenuation at 1310nm
0.36 dB/km
Attenuation at 1550nm
0.22 dB/km
Trunk Diameter
4.5mm
Breakout Diameter
3.0mm
Polarity
A (Tx) to B (Rx)
Jacket Color
Blue
Armor Layer
Stainless Steel Tube
Tensile Loads
200/400N (Long/Short Term)
Operating Temperature
-25~70°C
Storage Temperature
-25~70°C



Product line

6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable 96 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable 106 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable 11





FAQ
Q1:Can I have a sample order? What is your MOQ ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales
representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
