| Brand Name: | Gezhi or OEM |
| Model Number: | OSW-16x32 |
| MOQ: | 1 pieces |
| Price: | USD >= 1 pieces $500 |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Product description

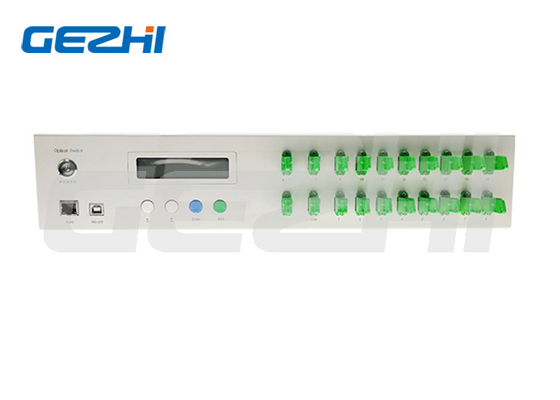

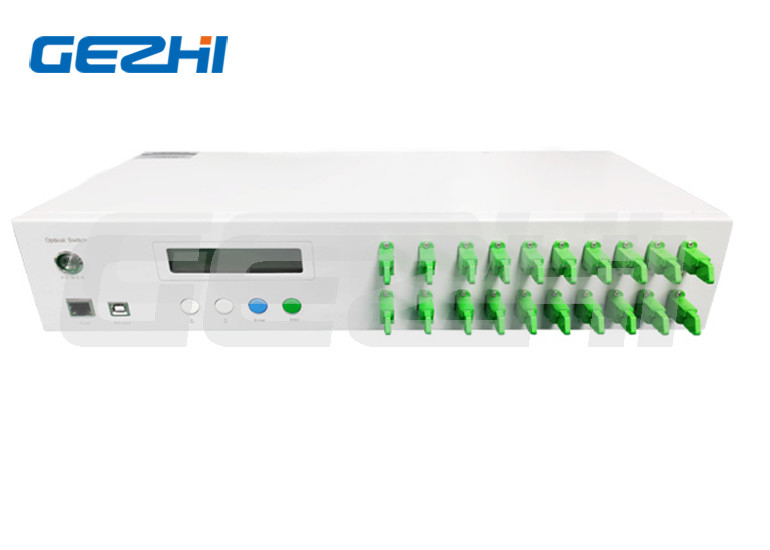

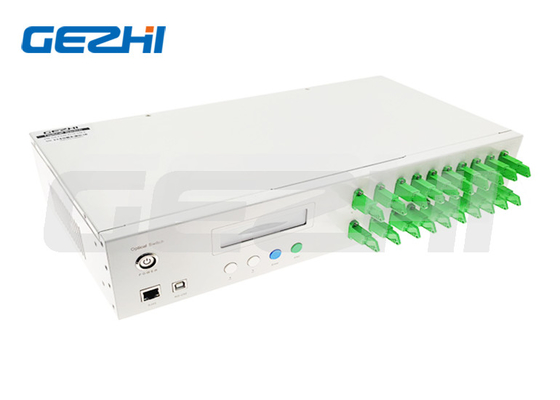

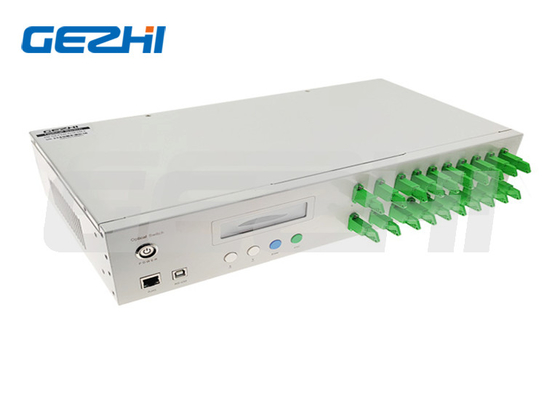

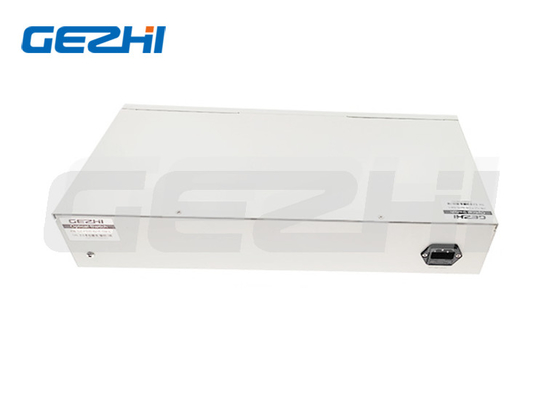

WavelengthMulti-channel Mechanical MXN Fiber Optical Switch 19" Rack m
The 2xN MxN Matrix Fiber Optical Switch is fully bi-directional and transparent to the full wavelength range of the installed fiber. Its is a proprietary matrix optical switch that allows any of the inputs fiber to connect to any of the outputs fiber in a fully non-blocking, all optical-cross-connect configuration.
The customized wavelength, fiber type, input & Outputchannel can available.
GEZHI Photonics produce full range of Matrix Optical switch like 2x8 , 2x16 , 2x64 , 4x4 , 4x16 , 4x32 , 8x8 , 8x16 , 16x16 , 20x20......128x128 matrix optical switch etc.
Features
SerialNet, High Reliability, High Stability
LED display panel. Visual display, Convenient operation
Transparent transmission signal. High stability and reliability
Channel and time interval of automatic scanning can be set up
RS232 Control and RJ45 Ethernet Remote Management
Applications
FITL
Automatic Measurement
Optical Network Remote Monitoring Cable Monitoring and Maintaining system
Specification
| Parameter | Unit | 2x4 | 2x8 | 2x12 | 2x16 | 2x24 | 2x32 | 2x64 | 4x4 | 8x8 | 16x16 |
| Wavelength Range | nm | 1260~1650 | |||||||||
| Testing Wavelength | nm | 1310/1550 | |||||||||
| Insertion Loss | dB | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.8 | ≤1.8 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.5 |
| Return Loss | dB | SM ≥ 50 | |||||||||
| Crosstalk | dB | ≤-55 | |||||||||
| PDL | dB | ≤0.05 | |||||||||
| WDL | dB | ≤0.25 | |||||||||
| TDL | dB | ≤0.25 | |||||||||
| Repeatability | dB | ≤0.02 | |||||||||
| Lifetime | times | >107 | |||||||||
| Switching Time | ms | ≤8 (Adjacent Channel) | |||||||||
| Optical Power | mW | ≤500 | |||||||||
| Connector | / | FC, SC, LC, ST, SMA or customized | |||||||||
| Monitor Port | / | RJ45 , RS232 | |||||||||
| Working Power Supply (Plug Tyep) | V | AC:220V (50/60Hz) or DC:36V~72V | |||||||||
| Operating Temperature | ℃ | -10~+60 | |||||||||
| Storage Temperature | ℃ | -40~+85 | |||||||||
| Rackmount | mm | 19”Rack mount 1U , 2U, 3U or 4U | |||||||||
Ordering Information OSW-XxX-X-XX-X-XX-XX-XX-XX
Video
|
|
