Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
CWDM Mux Demux
Created with Pixso. High Stability and Reliability 4CH CWDM MUX Module with 1470/1490/1510/1530nm Wavelength in ABS Box

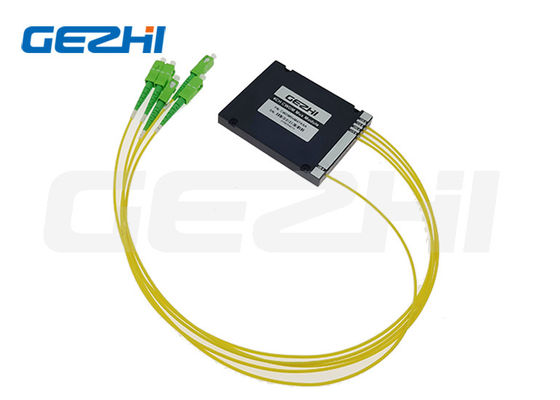

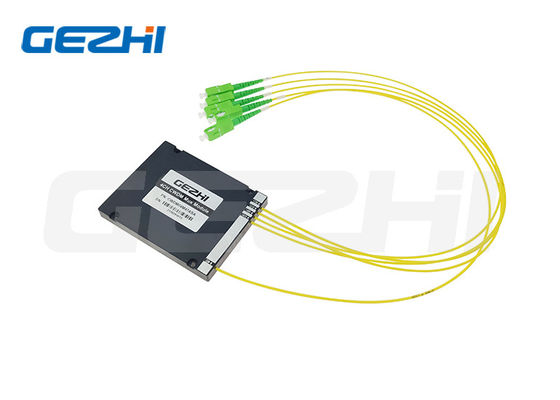

High Stability and Reliability 4CH CWDM MUX Module with 1470/1490/1510/1530nm Wavelength in ABS Box
  • name
  • name

High Stability and Reliability 4CH CWDM MUX Module with 1470/1490/1510/1530nm Wavelength in ABS Box

Brand Name: GEZHI or OEM
Model Number: CWDM04M47ASA
MOQ: 1pc
Price: US$65
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Product Name:
4CH CWDM MUX
Connector:
SC/APC
Wavelength:
1470/1490/1510/1530nm
Package Dimension:
ABS: 100*80*10
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

1530nm CWDM MUX Module

,

High Stability CWDM MUX Module

,

1470/1490/1510/1530nm CWDM MUX Module

Product Description
High Stability and Reliability 4CH CWDM MUX Module
1470/1490/1510/1530nm CWDM ABS Box
Product Overview
The GEZHI Photonics 4CH CWDM Module utilizes Thin Film Filter (TFF) technology and is available in various package sizes and wavelength options. Designed for long-distance, high-capacity trunk networks and metropolitan area network core nodes, this module is widely implemented in 5G telecommunications, MAN, backbone networks, and data centers.
GEZHI Photonics offers a comprehensive range of WDM multiplexers that are RoHS compliant and meet Telcordia GR-1209 and GR-1221 standards.
Key Features
  • Low Insertion Loss
  • High Channel Isolation
  • High Stability and Reliability
Applications
  • WDM Systems
  • 5G Telecommunications
  • Data Centers
Technical Specifications
ParameterUnitCWDM Mux or Demux
Channel Number-4CH
Channel Spacingnm20
Channel Central Wavelengthnm1470/1490/1510/1530
Channel Passbandnmλ@ITU ±7.5nm
Insertion Loss @PBdB<1.5
Isolation @Adjacent ChanneldB>30
Isolation @Non-adjacent ChanneldB>40
Passband RippledB<0.3
Polarization Dependent LossdB<0.10
Polarization Mode Dispersionps<0.15
Directivity & Return LossdB>50
Power HandlingmW<500
Fiber Type-SMF-28e or Customized
Connector-SC/APC
Operating Temperature°C-10~+70
Storage Temperature°C-40~+85
Package DimensionmmABS: 100*80*10
Product Drawing
High Stability and Reliability 4CH CWDM MUX Module with 1470/1490/1510/1530nm Wavelength in ABS Box 0
Ordering Information
CWDM | Number of Channels | Configuration | Module Type | Fiber Type | Fiber Length | Connector
CWDM | 01=1CH 02=2CH 03=3CH 04=4CH ... 16=16CH 18=18CH | M=Mux D=Demux A=Mux+Demux | A1=ABS box 100x80x10mm A2=ABS box 120x80x18mm A3=ABS box 140x115x15mm L1=LGX 129*29*130mm L2=LGX insert in 2slot Rack L4=LGX insert in 4slot Rack R1=19" 1U Rack R2=2slot 19″1U Rack R4=4slot 19″1U Rack X=Customized | 09=900um loose tube 20=2.0mm 30=3.0mm | 05=0.5m 10=1.0m 15=1.5m S=Specify | 00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC S=Specify
Frequently Asked Questions
Q1: Can I have a sample order? What is your MOQ?
A1: Sample orders are welcome for testing and quality verification. We have no minimum order quantity - single unit samples are available. Mixed samples are also acceptable.
Q2: What's the Lead Time?
A2: Normal lead time is approximately 1 week. For large quantities and specialized products, please confirm lead time with our sales representative. We maintain stock for some products and can ship within 1-3 days after payment confirmation.
Q3: What are the payment terms?
A3: We accept T/T, PayPal, Western Union, cash payment, and Alibaba transactions.
Q4: What is your warranty period?
A4: 3-year warranty.
Q5: Can I use our own logo, label, and packaging?
A5: Yes, we provide OEM services according to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging.
