Created with Pixso. 3CH CWDM MUX Module for 5G Backbone Network with 1310/1490/1550nm Wavelength
3CH CWDM MUX Module for 5G Backbone Network with 1310/1490/1550nm Wavelength
  • name
  • name
  • name
  • name
  • name
  • name

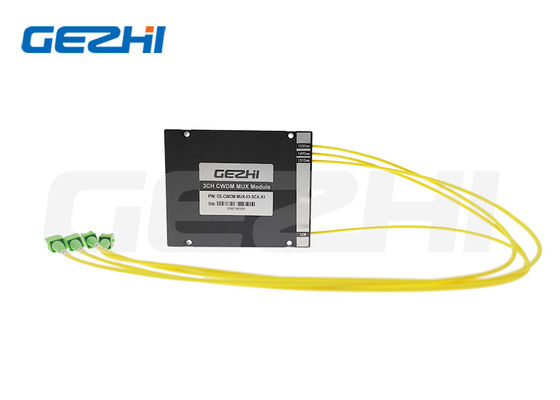

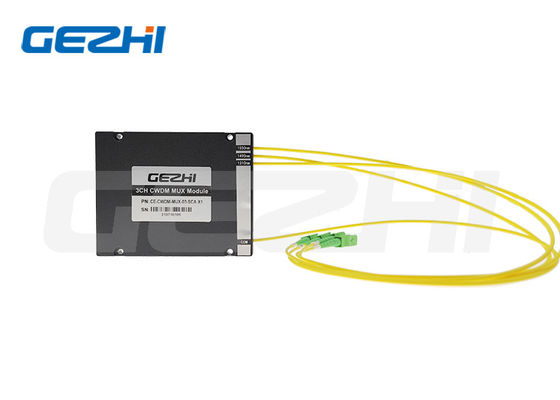

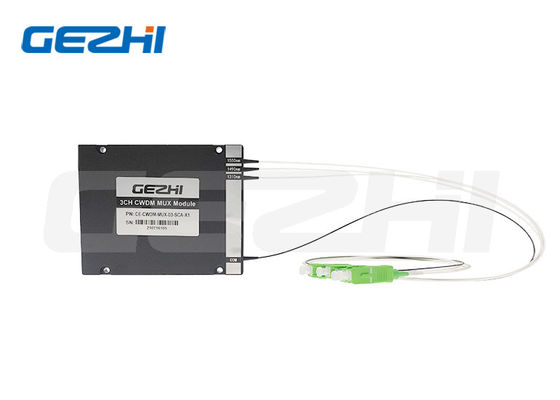

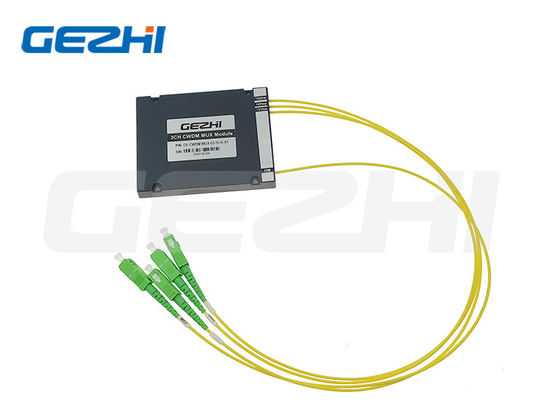

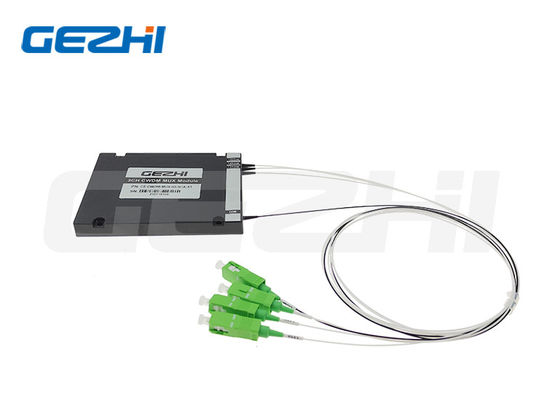

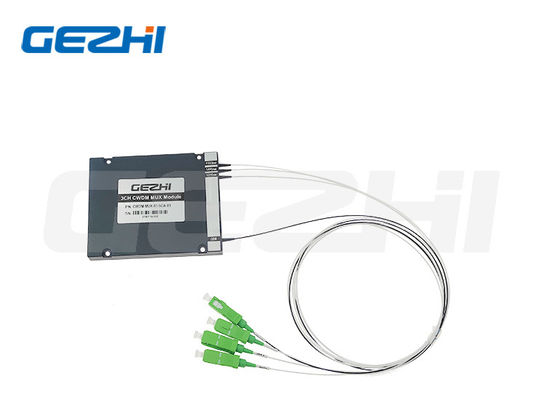

3CH CWDM MUX Module for 5G Backbone Network with 1310/1490/1550nm Wavelength

Brand Name: GEZHI or OEM
Model Number: CE-CWDM-MUX-03SCA-X1
MOQ: 1pc
Price: US$30
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Name:
CWDM MUX
Wavelength:
1310/1490/1550nm
Channel:
3CH
Connector:
SC/APC
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

3CH CWDM MUX Module

,

1310/1490/1550nm CWDM MUX Module

Product Description
Multiplexer Optical 3CH CWDM MUX Module for 5G Backbone Network
This 3-channel CWDM MUX Module operates at 1310/1490/1550nm wavelengths, specifically designed for 5G backbone networks and metro access applications.
Product Overview
CWDM Mux/Demux modules provide a cost-effective alternative to DWDM systems for metro access networks. With wide channel spacing of 20nm, these systems eliminate the need for precise wavelength control, enabling the use of cost-efficient non-cooled lasers and passive components.
Key Features & Applications
Features
  • Low Insertion Loss
  • Low Polarization Dependent Loss (PDL)
  • High Channel Isolation
Applications
  • WDM Systems
  • Data Center Networks
Performance Specifications
Parameter Specification
Type 3CH CWDM MUX
Operating Wavelength 1310, 1490, 1550 nm
Passband ±7.5 nm
Channel Spacing 20 nm
1310nm Port Insertion Loss <0.8 dB
1490nm Port Insertion Loss <1.0 dB
1550nm Port Insertion Loss <1.2 dB
Isolation (Adjacent Channel) ≥30 dB
Isolation (Non-Adjacent Channel) ≥40 dB
PDL ≤0.10 dB
Wavelength Thermal Stability ≤0.003 nm/℃
Insertion Loss Thermal Stability ≤0.005 dB/℃
Directivity ≥55 dB
Return Loss ≥45 dB
Operating Temperature -20 to +70 ℃
Storage Temperature -40 to +85 ℃
Fiber Type 2.0mm/3.0mm Cable, 900um
Fiber Length 1m, 2m, and custom options
Package Size 100*80*10 mm
Customization options are available upon request.
Technical Drawing
3CH CWDM MUX Module for 5G Backbone Network with 1310/1490/1550nm Wavelength 0
Product Images
3CH CWDM MUX Module for 5G Backbone Network with 1310/1490/1550nm Wavelength 1 3CH CWDM MUX Module for 5G Backbone Network with 1310/1490/1550nm Wavelength 2
