| Brand Name: | GEZHI or OEM |
| Model Number: | CE-CWDM-MUX-03SCA-X1 |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
Multiplexer Optical 3CH CWDM MUX Module 5G Backbone Network 1310/1490/1550nm
Product Overview
CWDM Mux Demux
CWDM Mux/Demux (optical multiplexer/demultiplexer) Module are considered as a cheaper and simpler alternative to DWDM systems for metro access network applications. Since CWDM Mux/Demux systems have wide channel spacing (20 nm), they do not require precise wavelength control for transmitter lasers. Thus, cost-effective non-cooled lasers as well as lower-cost passive components may be used for CWDM Mux or Demux systems. GEZHI Photonics supplies a variety of WDM devices and are promoting higher speed and more reliable optical network.
| Features | Applications |
| 1.Low Insertion Loss 2.Low PDL 3.High Channel Isolation |
1.WDM System 2.Data Center |
Performance Specifications
| Type | 3CH CWDM MUX | |
| Operating Wavelength | nm | 1310, 1490, 1550 |
| Passband | nm | ±7.5 |
| Channel Spacing | nm | 20 |
| 1310nm Port IL | dB | <0.8 |
| 1490nm Port IL | dB | <1.0 |
| 1550nm Port IL | dB | <1.2 |
| Isolation (Adjacent Channel) | dB | ≥30 |
| Isolation (Non-Adjacent Channel) | dB | ≥40 |
| PDL | dB |
≤0.1 ≤0.05 ≤0.05 ≤0.05 ≤0.10 |
| Wavelength thermal stability | nm/℃ | ≤0.003 |
| Insertion loss thermal stability | dB/℃ | ≤0.005 |
| Directivity | dB | ≥55 |
| Return loss | dB | ≥45 |
| Operating temperature | ℃ |
-20~+70
|
| Storage temperature | ℃ | -40~+85 |
| Fiber Type | mm | 2.0mm/3.0mm Cable,900um |
| Fiber Length | / | 1m.2m... |
| Package Size | mm | 100x80x10 |
Note: 1. Customization is available.
Drawing

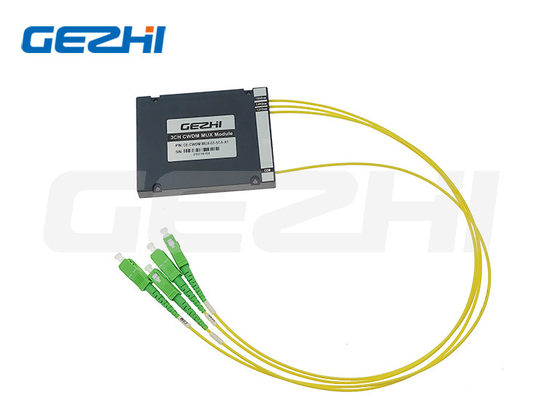

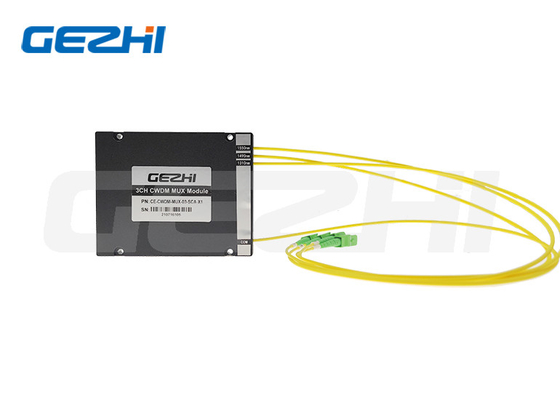

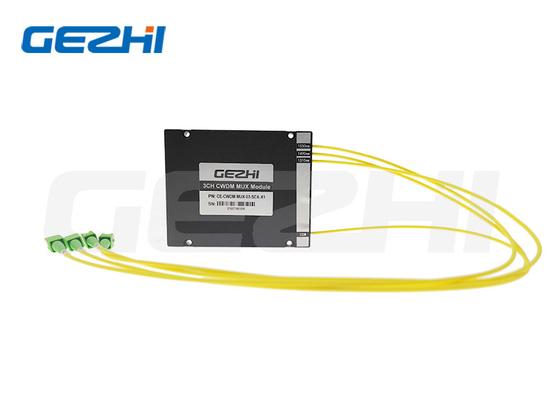

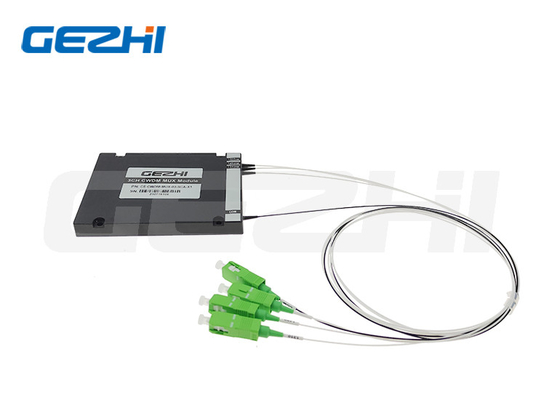

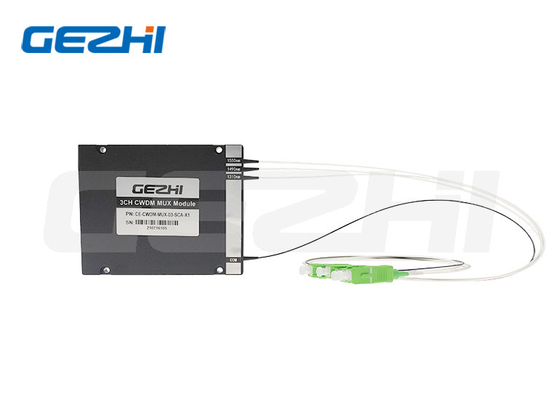

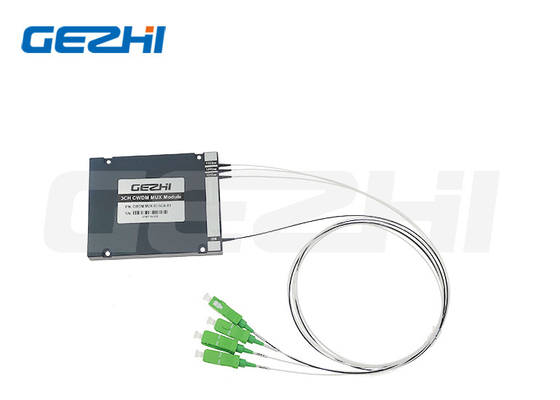

Product images
|
|
