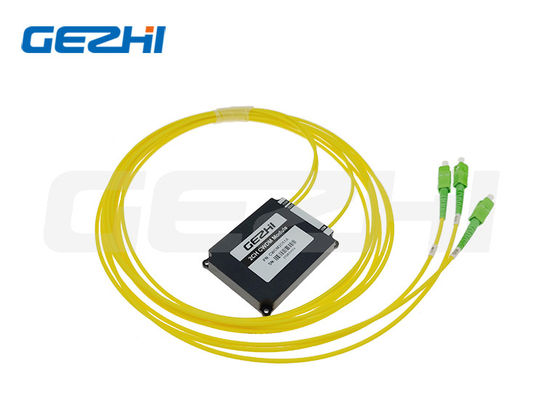

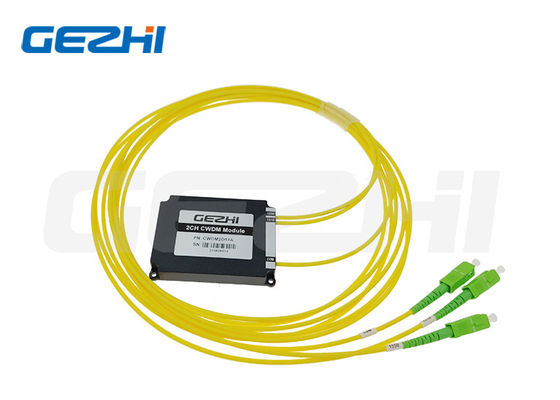

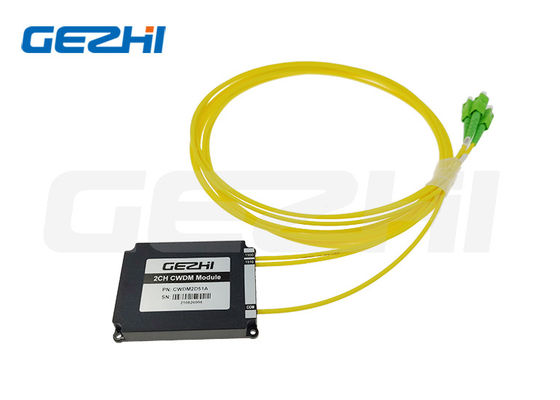

1510nm 1550nm 2CH CWDM Multiplexer Module ABS Box for Fiber Optic Networks

Name: 1510nm 1550nm 2CH CWDM Multiplexer Module ABS Box for Fiber Optic Networks
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: CWDM2D51A
Price: 28.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	CWDM2D51A
MOQ:	1pc
Price:	US$18-US$38
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength:

1510nm/1550nm

Channel:

Connector:

SC/APC

Fiber Length:

50cm

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

1550nm CWDM Multiplexer Module

ABS box CWDM Multiplexer Module

1510nm CWDM Multiplexer Module

Product Description

1510nm 1550nm 2CH CWDM Multiplexer Module

Professional-grade CWDM multiplexer module housed in ABS box measuring 100*80*10mm, designed for reliable fiber optic network applications.

Manufacturer Overview

Gezhi Photonics Co., Ltd, established in 2014 and located in Shenzhen, China, specializes in the research, development, production, and service of fiber optic and network products. Our core offerings include FTTH products and comprehensive network solutions.

Quality assurance is fundamental to our operations, with certifications including ISO9001 and RoHS compliance. We maintain strict quality control protocols and provide exceptional customer service, serving markets throughout China and internationally.

Key Features & Applications

Low Insertion Loss

Line Monitoring

High Stability and Reliability

WDM Network Systems

Wide Pass Band

Telecommunication Infrastructure

Epoxy-free Optical Path

Cellular Applications

High Channel Isolation

Fiber Optical Amplifiers

Access Networks

Technical Performance Specifications

Parameter	Specification
Channel Wavelength (nm)	1270~1610 or 1271~1611
Channel Spacing (nm)	20
Channel Passband (@-0.5dB bandwidth (nm)	>13
Pass Channel Insertion Loss (dB)	≤0.6
Reflection Channel Insertion Loss (dB)	≤0.4
Channel Ripple (dB)	<0.3
Pass Isolation (dB)	Adjacent: ≥30 Non-adjacent: ≥40
Reflection Channel Isolation (dB)	>15
Insertion Loss Temperature Sensitivity (dB/℃)	<0.005
Wavelength Temperature Shifting (nm/℃)	<0.002
Polarization Dependent Loss (dB)	<0.1

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a factory verified by SGS.

Do you provide OEM service?

Yes, we can print your logo or label on the products or packaging.

Can you provide free samples?

Low-value samples can be provided free of charge, but shipping costs are the responsibility of the customer.

How do you guarantee quality?

All products undergo 100% testing before shipment under our comprehensive quality management system.

What is your delivery time?

Samples: 3-5 working days. Formal orders: 7-10 working days.

What are your payment terms?

We accept T/T, Western Union, MoneyGram, and PayPal. Samples require 100% payment. Formal orders: 30% deposit, 70% balance before shipment.
