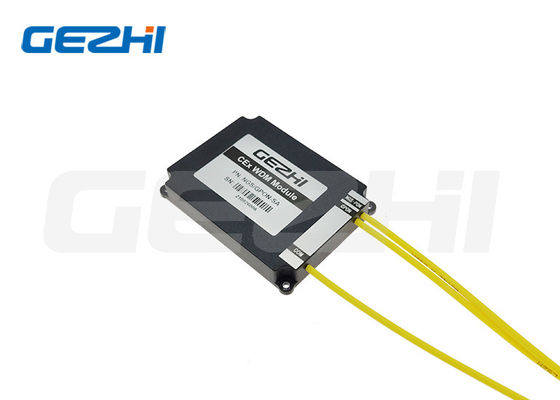

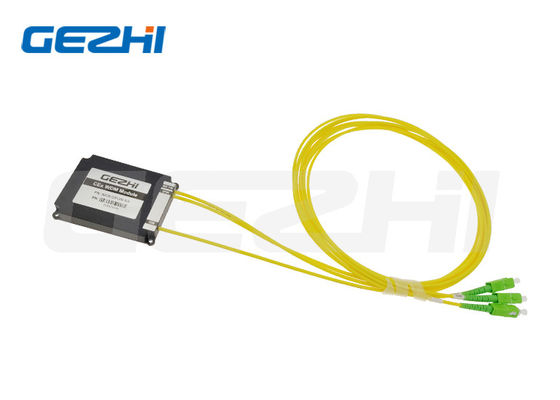

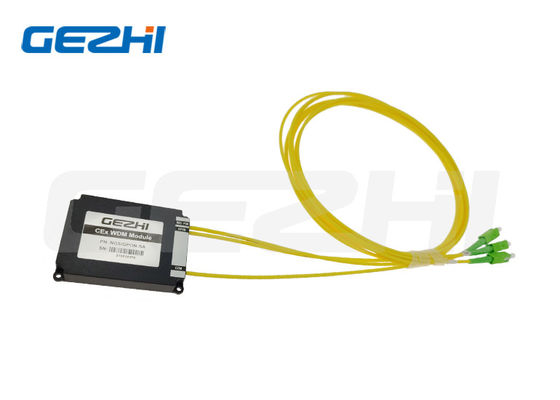

RoHS Compliant CEx WDM Module with Low Insertion Loss and High Channel Isolation for NGS-PON GPON Networks

Name: RoHS Compliant CEx WDM Module with Low Insertion Loss and High Channel Isolation for NGS-PON GPON Networks
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: NGS/GPON-SA
Price: 33.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	NGS/GPON-SA
MOQ:	1pc
Price:	US$17-US$49
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

CEx WDM Module

PN:

NGS/GPON-SA

Connector:

SC/APC

Fiber Type:

Corning Ultra Fiber (G657.A1)

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

NGS-PON GPON CEx WDM1r Module

Optical Telecommunication Networks CEx WDM1r Module

RoHS Compliant CEx WDM1r Module

Product Description

RoHS Compliant CEx WDM1r Module for NGS-PON GPON Optical Networks

The Coexistence Element (CEx) xWDM/xPON multiplexer is a single WDM device designed to combine current G-PON FTTH services with emerging XGS-PON and Next Generation NG-PON2 technologies. This versatile solution supports additional provisioning wavelengths including RF, Point to Point (PtP), and OTDR monitoring, fully compliant with ITU-T G.984.5 standards.

High-quality components ensure exceptional operational stability across the entire spectral range with perfect thermal performance. Our flexible CEx product platform allows customized PON deployments tailored to your specific requirements and cost-effectiveness needs.

Key Features

Low Insertion Loss
High Channel Isolation
RoHS Compliant
Customized Functionalities Available

Applications

WDM Systems
PON Systems
FTTH Access Networks
Optical Telecommunication Networks

Coexistence Element Wavelength Specifications

Protocol/Service	Wavelength Range
G-PON Band	1290~1330, 1480~1500nm
XGS-PON Band	1260~1280, 1575~1580nm
NG-PON2 Band	1524~1544, 1596~1625nm
RF Video Band	1540~1565nm
PtP WDM-PON Band	1610~1625nm
OTDR Monitor Band	1640~1660nm

CEx Multiplexer Technical Specifications

CEx Model	Protocol/Service	Spectral Range	Max Insertion Loss	Isolation
CEx01	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
CEx01	NGA	1260-1280 & 1572-1650nm	1.0dB	≥16dB
CEx02	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
CEx02	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
CEx03	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	NG-PON2	1524-1544 & 1596-1625nm	1.4dB	≥16dB
CEx04	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	NG-PON2	1524-1544 & 1596-1625nm	1.4dB	≥25dB
CEx05	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	RF Video	1540-1565nm	1.4dB	≥30dB
CEx06	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	RF Video	1540-1565nm	1.7dB	≥30dB
	OTDR Monitor	1640-1660nm	1.4dB	≥30dB
CEx07	G-PON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	NG-PON2	1524-1544 & 1596-1625nm	1.4dB	≥25dB
	RF Video	1540-1565nm	2.0dB	≥30dB
	PtP WDM-PON	1610-1625nm	1.7dB	≥30dB
CEx08	G-PON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	NG-PON2	1524-1544 & 1596-1625nm	1.4dB	≥25dB
	OTDR Monitor	1640-1660nm	1.7dB	≥30dB
	PtP WDM-PON	1610-1625nm	2.0dB	≥30dB
	RF Video	1540-1565nm	2.3dB	≥30dB

Customized specifications are available. The above specifications do not include connector loss.

Additional Technical Parameters

Parameter	Unit	Value
PDL	dB	≤0.2
Directivity	dB	≥50
Return Loss	dB	≥50
Operating Temperature	℃	-10~+70
Storage Temperature	℃	-40~+85
Optical Power	mW	300
Fiber Type	/	Corning Ultra Fiber (G657.A1)

Ordering Information

Model	Configuration	Package Type	Cable Type	Fiber Length	Connector
CEx01-CEx08, S=Specify	1=1unit combo, 2=2unit combo, 3=3unit combo, 4=4unit combo, S=Specify	A0=ABS box 80x60x12mm, A1=ABS box 100x80x10mm, A2=ABS box 120x80x18mm, A3=ABS box 140x115x15mm, L1=LGX 12929130mm, L2=LGX insert in 2slot Rack, L4=LGX insert in 4slot Rack, R1=19" 1 U Rack, R2=2slot 19″1U Rack, R4=4slot 19″1U Rack, X=Customized	00=None, 09=900um loose tube, 20=2.0mm, 30=3.0mm	00=None, 05=0.5m, 10=1.0m, 15=1.5m, S=Specify	00=none, LP=LC/UPC, LA=LC/APC, SP=SC/UPC, SA=SC/APC, FP=FC/UPC, FA=FC/APC, S=Specify

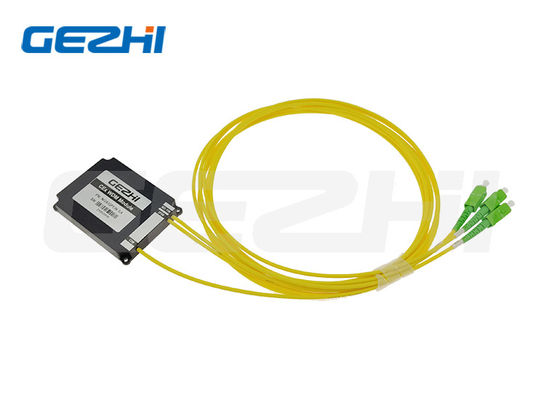

CEx Multiplexer Module ABS Box Package

CEx Multiplexer Module Rackmount Package
