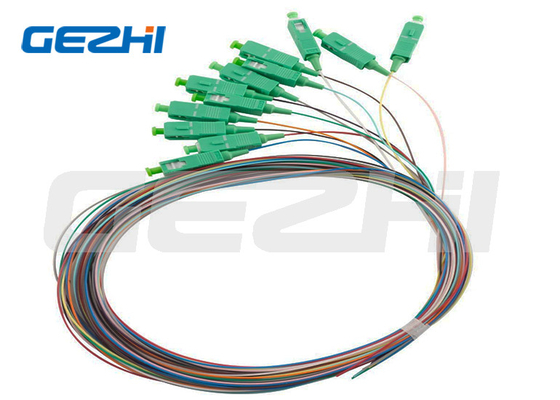

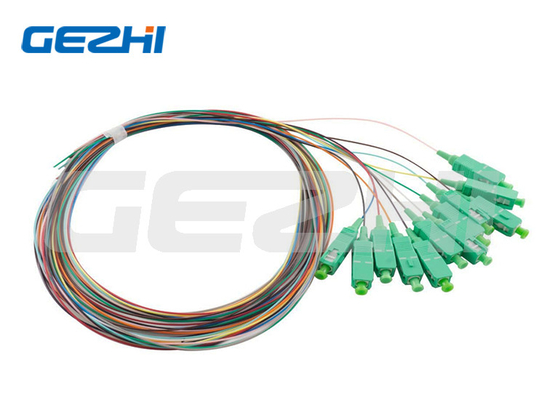

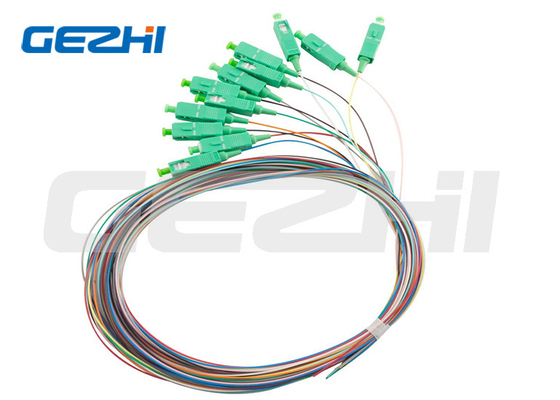

Optical Connector Type SC/APC Fiber Optic Pigtail 9/125 Fiber Patch Cord For Telecommunication

SC/APC Fiber Optic Pigtail Product description

                           SC/APC Fiber Optic Pigtail 9/125 Fiber fiber optic patch cord

5M Singlemode SC-APC Cable Fiber optic pigtails are great for fusion splicing inside of a fiber optic enclosure.

• Fiber 12 Strands Pigtail: Fiber Type Singlemode; Connectors SC/APC; 1.5 M 12 strands color coded. Strict factory testing ensures good repeatability and high stability
• Ceramic Ferrule: This fiber optic pigtail adopts great quality ceramic ferrule, with better coaxiality and size precision
• 12 Color Mark: Plug and play, with strong compatibility. 12 Strands Cable Individually color coded, Saves time and prevents incorrect patching with color-coded pigtails
• Good Performance: This fiber optic pigtail adopted 12 strand design, better durability. It has low insertion loss, high return loss, good temperature stability
• Wide Application: This fiber optic pigtail is widely used in optical fiber LAN, optical fiber communication system, instruments, network CATV
•

SC/APC Fiber Optic Pigtail  Parameters
1.Fiber Typ: Single-Mode, Connector (s): LC Connector, Cable Length: 1.5M; Minimum Bending Radius: 3.8cm
2.Ferrule material: ceramic; Working Wavelength: 1310-1550nm
3.Insertion loss: ≤0.3; Plug: Ceramic Ferrule; Echo wear: ≥ 50; Tensile type: 4KG
4.Interchangeability: Operating temperature: -40 ~ +80; Storage temperature: -40 ~+85; Number of plugs: ≥1000

SC/APC Fiber Optic Pigtail  Specification:
1.12 Color Mark:Splice-ready 900um buffered cables are color-coded according to industry standards for easy identification and the pre-terminated connectors at the opposite end are machine polished for optimal performance.
2.Excellent Feature: Lower Insertion Loss, High Return Loss, Environmentally Stable & Repeatability;All fiber bushing are made of high quality porcelain so that fiber tail cable and patch cord of any configuration can make optical signal loss very small
3.Fiber pigtails are machine polished, and the result is a much lower light loss than can be achieved by hand polishing in the field

SC/APC Fiber Optic Pigtail Application

Telecom and Datacom, Storage Network, CATV

& Multimedia Application, Systems Integration for Long Haul,

Metro and Access Network, Fiber to the Indoor (FTTX) Test.

SC/APC Fiber Optic Pigtail Package Included:


1 x 12 Strand Fiber Optic Pigtail Cable
