| Fiber Type: | Multimode | Material: | LSZH |
|---|---|---|---|
| Insertion Loss: | <=0.02 DB | Return Loss: | >= 35 DB |
| Cable Type: | OM4 Duplex | Connector Type: | LC-LC |
| Highlight: | LSZH Fiber Optic Patch Cord,LC LC Duplex Patch Cord,15M Fiber Optic Patch Cord |
||

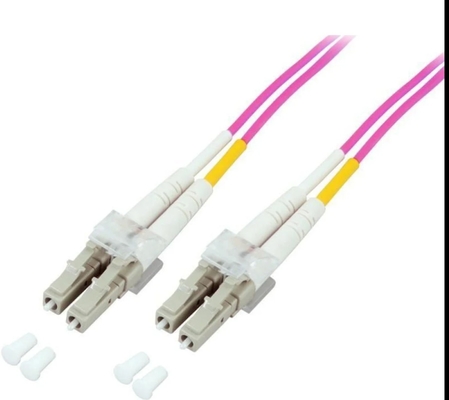

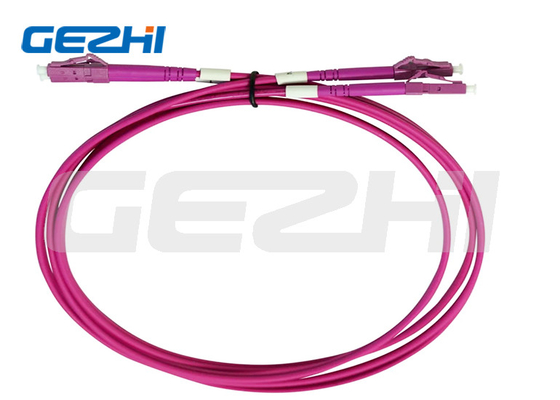

OM4 Multimode LC LC Duplex Patch Cord product description
OM4 Multimode LC LC Duplex Patch Cord 15M, LSZH fiber optic patch cord
This jumper uses multi-mode 50/125um dual-core optical fiber, LC duplex connector type, and the outer diameter of the cable is 1.6mm, which is easy to coil and manage, and easy to install.
OM4 Multimode LC LC Duplex Patch Cord product Performance parameters:
Performance parameters:
Insertion loss: ≤0.2dB@850nm
Pickback loss: ≥35dB2.
Operating temperature range: -20 to 65 degrees
OM4 Multimode LC LC Duplex Patch Cord product Sheath requirements:
The outer sheath of the optical fiber jumper is made of low smoke and halogen-free (LSZH), which complies with ANSI/TIA/EIA 568-C.3 and ISO/IEC 11801 standards
OM4 Multimode LC LC Duplex Patch Cord product Application scenarios:
Suitable for application environments such as telecommunications rooms, data centers, and fiber-to-the-desktop. It supports the interconnection and cross-connection of optical cable cabling network equipment, storage devices, and transceivers. It is suitable for high-density application environments.
