Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optic Pigtail | Product Model: | 12 Core LC/UPC SM Without Jacket |
|---|---|---|---|
| Optical Connector: | LC | Connector End Face: | UPC |
| Work Environment: | Indoor |
Fiber Optic Patch Cord Pigtail 12 Core LC/UPC SM Product description

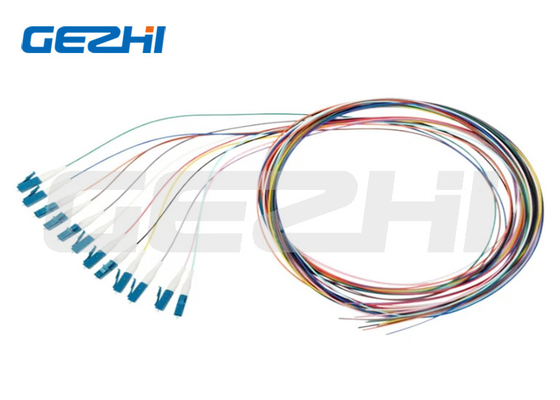

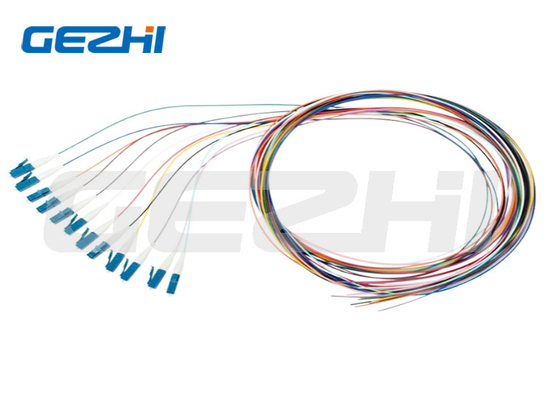

Fiber Optic Patch Cord Pigtail 12 Core LC/UPC SM without jacket
Fiber Optic Patch Cord Pigtail 12 Core LC/UPC specifications
| Product Name | Fiber optic Pigtail | Fiber Model | Single mode | |
| Product Model | 12 Core LC/UPC SM without jacket | Fiber Core | 9/125μm | |
| Optical Connector | LC | Jacket Color | 12 Color | |
| Connector End Face | UPC | Jacket Diameter | 0.9mm | |
| Work Environment | Indoor | Jacket Material | PVC |
| Parameter | SC, LC,FC,ST fiber patch cord | |||
| SM | MM | |||
| PC | UPC | APC | PC | |
| Insertion loss(typical) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return loss | ≥45 | ≥50 | ≥60 | ≥30 |
| Interchangeability | ≤0.2dB | |||
| Salt Spray | ≤0.1dB | |||
| Repeatability | ≤0.1dB (1000 times) | |||
| Vibration | ≤0.2dB (550Hz 1.5mm) | |||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | |||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | |||
| Apex Offset | 0μm ~ 50μm | |||
| Radius of Curvature |
7mm ~ 25mm |
|||
Fiber Optic Patch Cord Pigtail 12 Core LC/UPC Feature
Ceramic end face (APC/UPC/PC)
High Quality Sc connector
High quality fiber
Quality material
