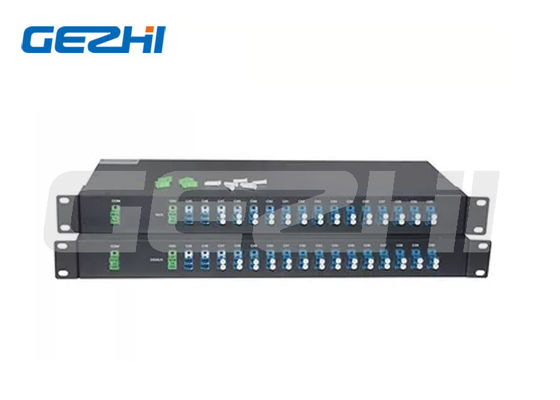

16 Channels Dual Fiber DWDM Mux Demux Module with 1U Rack Mount LC UPC Connector

Name: 16 Channels Dual Fiber DWDM Mux Demux Module with 1U Rack Mount LC UPC Connector
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GEZHI-DWDM
Price: 238.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GEZHI-DWDM
MOQ:	1pc
Price:	US$108-US$368
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Channels:

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

FMU DWDM Mux Demux

Dual Fiber DWDM Mux Demux

16 Channels DWDM Module

Product Description

16 Channels Dual Fiber DWDM Mux Demux 1U Rack Mount LC UPC

Product Overview

16 Channels C21-C36 Dual Fiber 1U Rack Mount, LC/UPC Expansion Port DWDM Mux Demux

Key Features

DWDM MUX based on ITU grid wavelength
High channel isolation
Low insertion loss
Optical path epoxy free
Telcordia 1221 compliant
Ultra low TDL

Applications

DWDM Network
PON Networks
CATV Links
Fiber Optical Amplifier

Performance Specifications

Parameter	Unit	Value
Central Wavelength	nm	ITU-T Grid
Channel Spacing	nm	0.8 (100GHz) \| 1.6 (200GHz)
Number of Channels	----	8 \| 16 \| 8
Channel Passband Min	nm	0.11 \| 0.11 \| 0.25
Insertion Loss Ty	dB	3 \| 4 \| 3
Insertion Loss Max	dB	2.5 \| 3.5 \| 3.5
Ripple Max	dB	0.5 \| 0.5 \| 0.5
Channel Uniformity Max	dB	1 \| 1.5 \| 1
Isolation Adjacent Channels Min	dB	25
Isolation Non-adjacent Channels Min	dB	40
Directivity Min	dB	50
Optical Return Loss Min	dB	45
PDL Max	dB	0.15
Thermal Stability Max	dB/°C	0.007
Thermal Wavelength Drift Max	nm/°C	0.001 \| 0.002
Operating Temperature	°C	0 to 70
Storage Temperature	°C	-40 to 85
Package Dimension	mm	140 × 100 × 13
Maximum Power Handling	mW	300

Ordering Information

2-44 Channels available

Com port: simplex or duplex

Fiber connector: LC/SC or other

Package: ABS plastic box, LGX metal cassette box, 19-inch rack mount

DWDM Solutions and DWDM SFP/XFP available

Minimum order quantity: 1 piece available for sampling

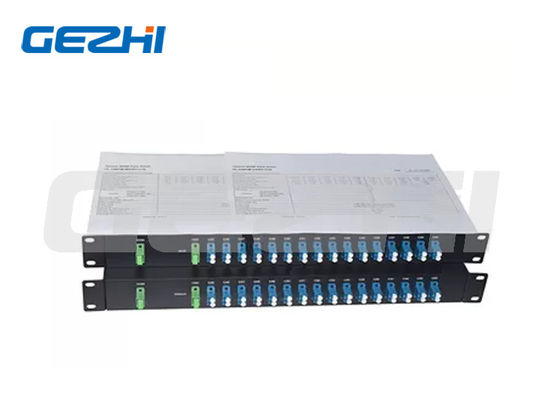

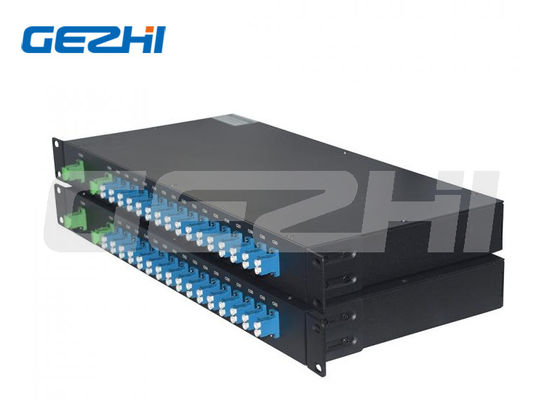

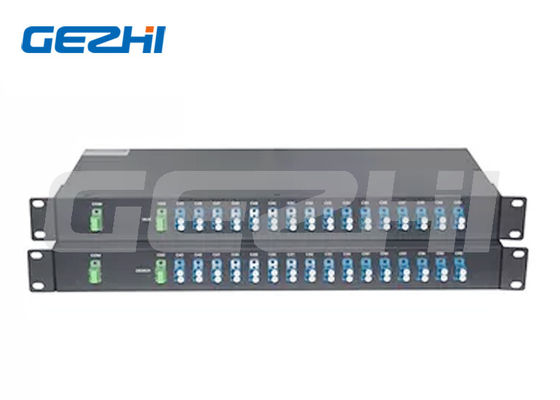

Product Images
