Product Details:
Payment & Shipping Terms:
|
| Package Type: | Steel Tube | Fiber Type: | PM Panda Fiber |
|---|---|---|---|
| Connector Type: | FC/UPC,FC/APC,SC/UPC,SC/APC Or Customized | Material: | PVC |
| Applications: | GPON Networks | Port: | 1x2 |
| High Light: | Polarization Maintaining Components DWDM,GPON Networks PM DWDM,PM Dense Wavelength Division Multiplexer |
||

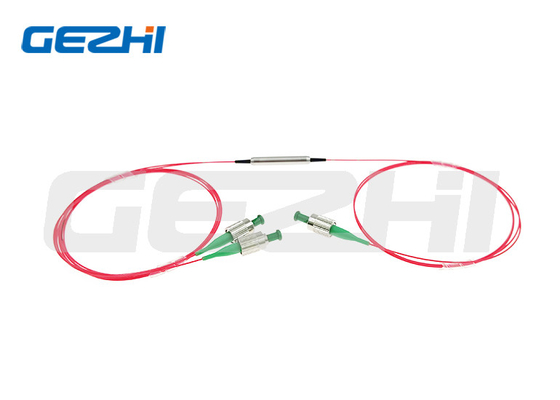

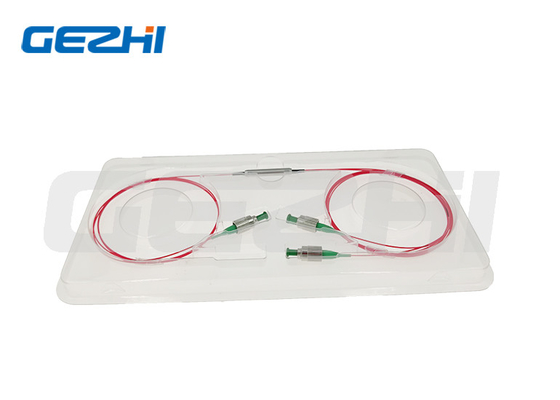

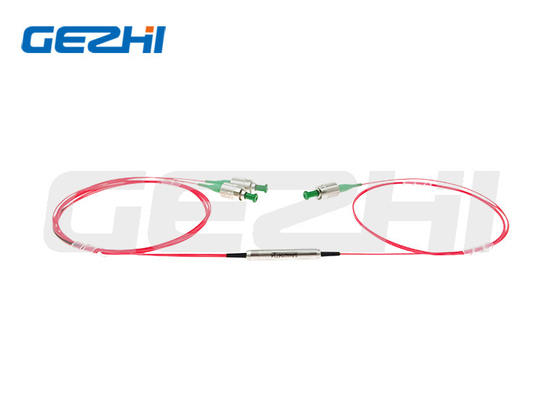

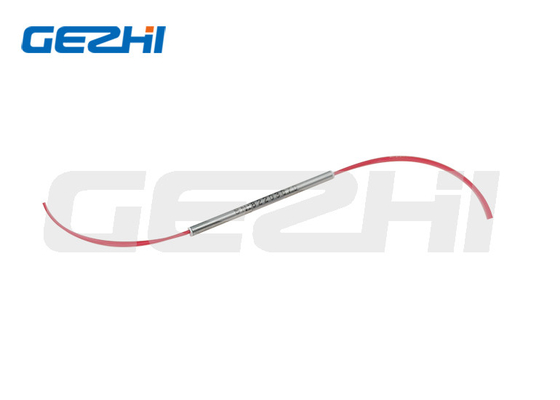

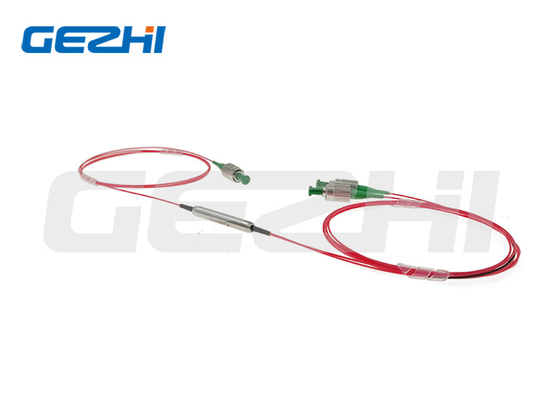

Polarization Maintaining Dense Wavelength Division Multiplexer for GPON Networks
Product Overview
Gezhi Photonics Polarization Maintaining Dense Wavelength Division Multiplexer series is designed and manufactured to international standard, the PM DWDM can preserve the polarization of optical signals. The devices use environmentally stable Thin Film Filters and advanced packaging technology to achieve a wide passband, low insertion loss, high channel isolation, excellent environmental stability and high extinction ratio. The Polarization Maintaining Dense WDM can be used individually to perform a single channel add or drop function or it can be used in DWDM systems and sensor systems.
Application
DWDM Module
DWDM System
GPON Networks
CATV Links
Features
Low Insertion Loss
High Return Loss
High Isolation
High Reliability & Stability
Product Specifications
| Parameters | Unit | Values | ||
| Channel Space | Ghz | 100 | 200 | |
| Center Wavelength | nm | ITU Grid | ||
| Center Wavelength Accuracy | nm | ±0.05 | ±0.1 | |
| Channel Pass band (@-0.5dB) | nm | 0.22 | 0.5 | |
| Max. Insertion Loss at 23℃ | Transmission Channel | dB | 1.0 | 0.9 |
| Reflection Channel | dB | 0.4 | 0.4 | |
| Min. Isolation at 23℃ | Adjacent Channel | dB | 30 | 30 |
| Non-adjacent Channel | dB | 40 | 40 | |
| Reflection Channel | dB | 12 | 12 | |
| Max. Channel Flatness | dB | 0.3 | ||
| Min. Extinction Ratio at 23℃ | dB | 20 | ||
| Max. Wavelength Thermal Stability | nm/℃ | 0.003 | ||
| Max. Insertion Loss Thermal Stability | dB/℃ | 0.005 | ||
| Min. Return Loss at 23℃ | dB | 50 | ||
| Max. Power Handling (CW) | mW | 500 | ||
| Fiber Type | - | PM Panda fiber | ||
| Operating Temperature | ℃ | 0~+70 | ||
| Storage Temperature | ℃ | -40~+85 | ||
With connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
Connector key is aligned to slow axis.
Dimensions
Ordering Information
| PMDWDM-11-234-555-67-8-999 | |
| 11 - Wavelength: | 26=26CH, 27=27CH,..., 40=40CH, 41=41CH, SS=Specified |
| 2 - Configuration: | 2=1x1, 3=1x2 |
| 3 - Channel Space: | 1=100G, 2=200G |
| 4 - Working Axis: | B=Both axis working, F=Fast axis blocked |
| 555 - Fiber Type: | 001=PM1550, 002=PM1310, SSS=Specified |
| 6 - Package Dimensions: | 0=φ5.5x35mm, S=Specified |
| 7 - Pigtail Type: | 0=bare fiber, 1=900μm loose tube |
| 8 - Fiber Length: | 0.8=0.8m, 1.0=1m, S=Specified |
| 999 - Connector Type: | 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified |
